V2024.05 MDI Scanner for GM Diagnostic tool Plus Lenovo X230 I5 4G Laptop

V2024.05 High Quality MDI for GM Scan tool Plus Lenovo X230 I5 4G Laptop

Highlights of MDI:

1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose

2.Can do cars from 1990-2024 Year

3.for GM MDI software will be pre-installed in the Lenovo X230 Laptop ,you can use it directly after you receive it

4.Support 2010-2024 year new cars

5.Support WIFI(optional)

Software version: V2024.05

MDI Manager version: V8.5.33.154

Update time: for GM Global V2024.05

Fully tested and works perfectly

High speed and low-speed GMLAN

Supported Protocol: UART, Class 2, KWP2000,GMLAN (CAN)For all GM CHEVROLET BUICK CADILLAC GMC HUMMER PONTIAC SAAB Vauxhall/Opel 16 pin vehicles from1996 to 2024

Multi-language: German, Spanish, French, Italian, Dutch, Portuguese, Vietnamese, Russian, Thai, Japanese, Korean, English

ChineseTech2win: English only

MDI: This newest release GM factory scan tool begins it’s coverage in model year 2010. MDI when combined with the Global Diagnostic System 2 (GDS2) software application allows servicing of GM’s new Global Architecure Platform (Global A) vehicles. Model coverage currently includes 2010-2013 Buick LaCrosse, 2010-2013 Cadillac SRX, 2010-2013 Chevrolet Camaro, 2010-2013 Equinox, 2011-2013 Chevrolet Volt, 2011-2013 Chevrolet Cruze, 2010-2013 GMC Terrain and 2011 Buick Regal. By model year 2014 virtually all GM vehicles are serviced by using the MDI/GDS application. For all other 2010-2013 GM vehicles you will need either a GM Tech-2 or the optional ‘Tech-2 Emulator’ program to achieve OEM level functionality. The ‘Tech-2 Emulator’ uses the MDI interface device as the communications interface between pc and vehicle.

MDI is the Multi Diagnostics Interface

1.works as the high-quality Vauxhall / Opel dealer diagnostic interface

can be used with Global TIS, GDS 2, Tech2Win software

2.provides full dealer level diagnostics and programming

3.supports all Vauxhall /Opel 16 pin vehicles from 1996 to 2024

4.perfoms quickly and used easily to make customers happy and win new business by offering the exact same functions as the main dealers,

including：

* Automatic vehicle recognition

* DTC reading and removal

* Complete list of live data streaming for all main ECU

* Recordable / playback of live data

* New software flash for existing ECU to fix drivability issues

* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)

* Programming new keys

* Setting / removing speed limiters

* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software

* More dealer specific functions

Description:

General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software

Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

MDI and GDS Background

MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.

Required for diagnostics on new SGM Global A Electrical Architecture Vehicles

Used with GM Global Diagnostics System (GDS), SPS and MDI Manager Software

Allows for GDS diagnostic

Language:

Multiple Diagnostic Interface (MDI)

All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.

Needed for Global A architechture vehicles

Supports Service Programming System (SPS)

Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application

Includes Flight Recorder Mode

New Diagnostic Application Software required for Global A Vehicles

Global Diagnostic System (GDS)

PC-based software diagnsotics

DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.

GDS is software which runs on a specific PC. Updates received via TIS2Web.

Multiple display options. More space for diagnsotics. Session management for multiple us.

What protocols does the MDI support?

For immediate use — At present, vehicles have two buses on the 16 pin connector

(high speed and low speed GMLAN). The GM MDI communicates using all of the existing GM protocols, the same as the Tech 2:

– UART

– Class 2

– KWP2000

– GMLAN (CAN)

When you want to test After 2010 year for GM car, you can use the GDS2 software to test it,run fast and stable:

When you want to test before 2010 year for GM car, you can use the tech2win software to test it,run fast and stable:

LenovoSecond Hand Laptop Lenovo X230 Specification:

Brand:Lenovo

Condition:Used

Type:Laptop/Notebook

Screen Size:12.5

Processor Type:Intel (R) Core(TM) I5-3320M CPU

Memory:8GB

Processor Speed:2.6GHz

Compared with other laptop, this one is better quality and run faster.

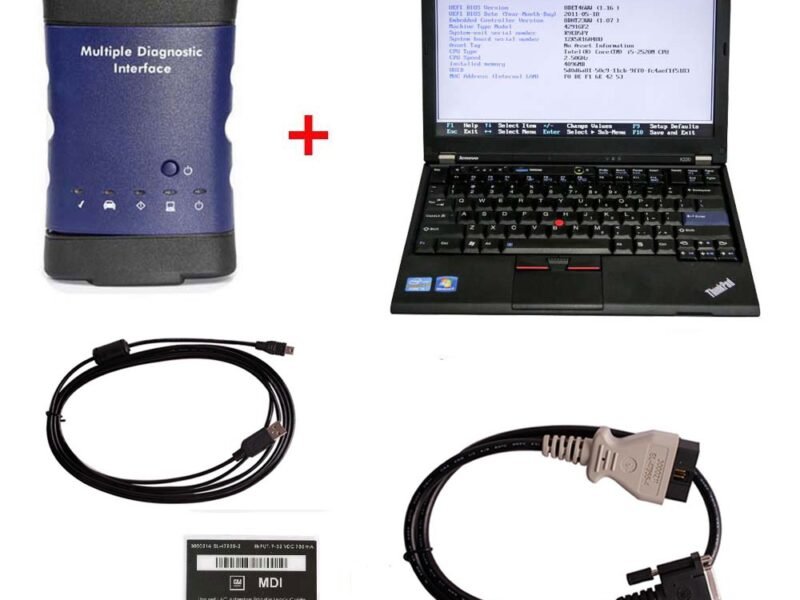

MDI Scan Tool Package List:

1pc x MDI Main unit

1pc x OBD2 Cable

1pc x USB Cable

1pc x Lenovo X230 Laptop （Second）

PCB Board Display:
