V2024.09 MDI 2 for GM Scan tool Plus Lenovo X230 Laptop Full Set Ready To Use

V2024.09 MDI 2 for GM Scan tool Plus Lenovo X230 Laptop Full Set Ready To Use

Lots of customer encounter setting problem when using G-M MDI II, so we recommend this bundling sale for those customer who want once get in hand then can use it directly. We will install and activate for you ready to use. What’s more, this package offer saves you money than buying

Highlights of G-M MDI 2 2024.09:

1.Multi-Languages available:English, French, German,Italian.etc. Total 30 languages to choose

2.Can do cars from 1990-2024 Year

3.we already installed the G-M MDI 2 software into the Second Hand Lenovo X230 Laptop,You can use the product directly after receiving the product.

4.Support 2010-2024 year new cars

5.Support WIFI

G-M MDI Manager version: V8.5.33.154

Update time:for GM Global V2024.09

Fully tested and works perfectly

High speed and low-speed GMLAN

Supported Protocol: UART, Class 2, KWP2000,GMLAN (CAN)For all GM CHEVROLET BUICK CADILLAC GMC HUMMER PONTIAC SAAB Vauxhall/Opel 16 pin vehicles from1996 to 2024

Multi-language: German, Spanish, French, Italian, Dutch, Portuguese, Vietnamese, Russian, Thai, Japanese, Korean, English

ChineseTech2win: English only

Language:

Vauxhall / Opel MDI 2 (Tech 3) OEM Level Diagnostics

MDI scan tool is the Multi Diagnostics Interface

Works as the high-quality Vauxhall / Opel dealer diagnostic interface

Can be used with Global TIS, GDS 2, Tech2Win software on a new laptop

Provides full dealer level diagnostics and programming

Supports all Vauxhall /Opel 16 pin vehicles from 1996 to 2024

Perfoms quickly and used easily  to make customers happy and win new business by offering the exact same functions as the main dealers, including;

* Automatic vehicle recognition

* DTC reading and removal

* Complete list of live data streaming for all main ECU

* Recordable / playback of live data

* New software flash for existing ECU to fix drivability issues

* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)

* Programming new keys

* Setting / removing speed limiters

* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software

* More dealer specific functions

G-M MDI 2 and GDS Background

MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.

Can be Used for SPS programming on existing and future SGM vehicles

Required for diagnostics on new SGM Global A Electrical Architecture Vehicles

Used with TIS2Web, GM Global Diagnostics System (GDS), SPS and MDI Manager Software

Allows for GDS diagnostic

G-M Multiple Diagnostic Interface (MDI)

All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.

Needed for Global A architechture vehicles

Supports Service Programming System (SPS)

Passthrough progrmming on past model and Global A vehicles

Supports PC-Based diagnostics with rollout of the Global Diagnositc System (GDS) application

Includes Flight Recorder Mode

What protocols does the G-M MDI 2 support?

For immediate use — At present, vehicles have two buses on the 16 pin connector

(high speed and low speed GMLAN). The G-M MDI communicates using all of the existing G-M protocols, the same as the G-M Tech2:

– UART

– Class 2

– KWP2000

– GMLAN (CAN)

Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available. (Remote will continue to be available for previous vehicle

When you test after 2010 year for gm car, you can use g-m gds2 software:

When you want to test before 2010 year for GM car, you can use the tech2win software to test it,run fast and stable:

Second Hand Laptop Lenovo X230 Specification:

Brand:Lenovo

Condition:Used

Type:Laptop/Notebook

Screen Size:12.5

Processor Type:Intel (R) Core(TM) I5-3320M CPU

Memory:8GB

Processor Speed:2.6GHz

An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.

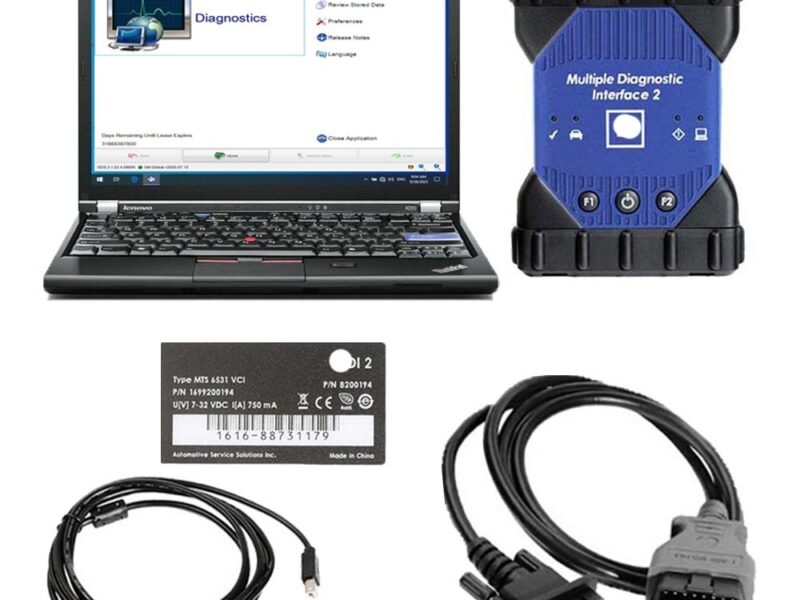

G-M MDI 2 Scan Tool Package List:

1pc x G-M MDI 2 Main unit

1pc x OBD2 Cable

1pc x USB Cable

1pc x Second Hand Laptop Lenovo X230 laptop with latest software
