V2025.01 MB Star Mercedes BENZ C6 Xentry Diagnosis VCI DOIP &AUDIO Pass Thru Multi Diagnostic Tool

MB Star C6 Mercedes BENZ Xentry Diagnosis VCI DOIP Diagnostic Tool support Benz Cars and Trucks V2025.03

Note:

It is recommended that you choose the configuration with the Lenovo T450 or Panasonic CF54 Laptop. We have installed all the software on the computer and you can use the product directly.

MB Star C6 XENTRY C6 Star Diagnosis VCI Multiplexer for Mercedes Vehicles till 2025.

Car xentry software  account ：admin , password：123456

Truck xentry software account ：12345 , password：12345

New Release mb star c6 support DOIP xentry vci diagnostic tool More function than mb star c4 free software

It supports MB diagnostic software Xenntry, For Mercedes Benz super engineer Vediamo and dedicated development software Monaco DTS, which has higher access rights than SDconnect C4/C5. VCI supports CAN/DoIP networks and can be used for diagnostics and writing of Audio & video entertainment systems for new cars.

Xentry Diagnosis Specification:

1.  Software: V2025.03 XENTRY/DAS Software

2.  Firmware support online update

3.  Connection: Wireless / Lan Cable Connection

4.  Support Vehicle: Work for Benz 12V Cars & 24V Trucks ,Support new Mercedes cars till 2025, old car models recommend purchasing SD Connect Multiplexer

5.  Functions: Star Diagnostic & programming (Support SCN Coding request client have an online account)

6.  Support DoIP Function (For Commander online programming)

7.  Update Method: return SSD for update under a 1-year warranty, or buy a new HDD/SSD.

8.  Activation: SSD software requires activation. When you get the HDD/SSD software, Insert the SSD into the laptop, and just send the Teamviewer ID and password to us (Support Online or Whatsapp ), and we will activate it for you.

9.  Supported Multi-Language: English, Bulgarian, Danish, Greek, Spanish, French, Italian, Korean, Polish, Romanian, Serbo-Croatian, Turkish, Czech, German, Finish, Hungarian, Japanese, Dutch, Portuguese, Russian, Swedish, Chinese

10.  Warranty: Main Unit 1 Year Warranty, Free technical support for any device problem

V2025.03 Car MB Star Diagnostic Software

V2025.01 Truck MB Star Diagnostic Software

Mercedes-benz C6 technical specifications

Supported industry standards:

1、ISO-22900-1/2 MVCI with D-PDU Driver（The following actual hardware channels are supported）

2、ISO13400-1/2/3/4 DoIP Driver

3、CAN-BUS1 channels：HSCAN1/CANFD1：PIN 6/14

4、CAN-BUS2 channels ：HSCAN2/CANFD2：PIN 12/13，PIN 3/11，PIN 1/9，

5、CAN-BUS3 channels ：FTCAN：PIN 12/13，PIN 3/11，PIN 1/9，

6、2 channelsK-Line *13

  K1-Line：K1,K2,K3,K6,K7,K8,K9,K10,K11,K12,K13,K14,K15

  K2-Line：K1,K2,K3,K6,K7,K8,K9,K10,K11,K12,K13,K14,K15

7、ADC input

8、Gigabit eCAT DB26 output

9、100 Mbit USB2.0 HS network card

10、WIFI relay/bridge

Supported protocols:

1、KW2CVW

2、CYCLERX

3、UDS

4、KW2C3PE

5、KW2C2N（SAE J1939）

6、485（SAE J1708）

7、KW2CANN

8、KW2000N

9、KW2K2N

10、KW2000PE

11、DoIP

Mercedes Benz Xentry diagnosis VCI DOIP C6 Features:

Can be used for all model series of For Mercedes For Benz vehicles

Support DoIP, cover more functions during SCN Coding than SD C4/C5

Functions including diagnosing, programming, simulation studying, repair information, automotive maintenance, technical service bulletin and so on

Diagnosis updates no longer necessary – firmware updates required on rare occasions

Does not need a power supply unit for external power supply

Dandy multiplexer with a small, sturdy construction (no PC core, battery, fan, or display)

Engines (All Gasoline & Diesel Systems)

Transmissions and Electronic Selector Modules

Airmatic and Active Body Control Suspension Systems

Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems

Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s

Drive Authorisation System

Sam (Signal Acquisition) Modules

Electronic Ignition System (EIS)

Pneumatic System Equipment and ATA functions

Air Conditioning / climate control Systems

Instrument Cluster

Tyre Pressure Control

Parktronic System

Keyless Go

D2b Command & Audio Gateway (D2B and MOST networks)

TV Tuner

Headlamp Range Adjustment

Seat Electronics

Rvc, RST & Vario Roof modules

Automatic Clutch System ACS

M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)

Assyst & ASSYST + systems

Supported systems

Engine

Transmission

Climate control system

SRS (Supplementary restraint system)

ABS

ASR

MPL

GM

BENZ ORIGINAL ANTI-THEFT DASX SYSTEM

System «Keyless-Go» from Mercedes-Benz

OBD-II SYSTEM

Advantages

Light and easy-to-use

No built-in motherboards, hard-drives, fans, displays and batteries

No external power needed

No regular firmware update needed

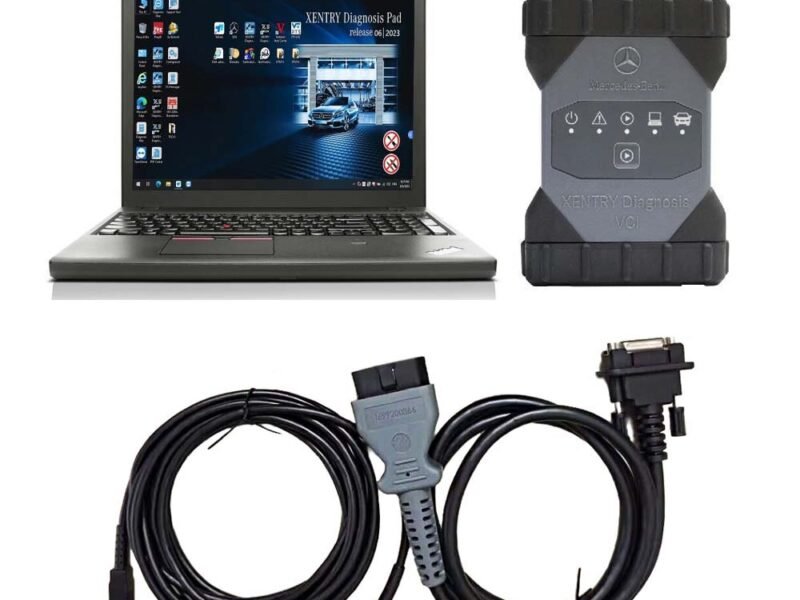

Package list:

Option 1 Package list：

1pc x XENTRY Diagnosis VCI Bzen C6 Multiplexer

1pc x OBDII Cable

1pc x USB Cable

Option 2 Package list：：

1pc x XENTRY Diagnosis VCI Bzen C6 Multiplexer

1pc x OBDII Cable

1pc x USB Cable

1pc x 500G SSD

Option 3 Package list：：

1pc x XENTRY Diagnosis VCI Bzen C6 Multiplexer

1pc x OBDII Cable

1pc x USB Cable

1pc x second hand Lenovo T450 laptop

Second Hand Laptop Lenovo T450

Specification:

Brand: Lenovo

Condition: Used

Type:Laptop/Notebook

Screen Size:12.5

Processor Type:Intel (R) Core(TM) I5-5200U CPU

Memory: 8GB

Option 4 Package list:

1pc x XENTRY Diagnosis VCI Bzen C6 Multiplexer

1pc x OBDII Cable

1pc x USB Cable

1pc x second hand Panasonic CF54 Laptop

Second Hand Panasonic CF54 Laptop Specification:

Brand: Panasonic

Condition: Used

Type:TOUGHBOOK

Screen Size:14

Processor Type:Intel (R) Core(TM) I5-5300U CPU

Memory: 8GB
